Stabilizer Frame

Regular price
€129,00 EUR
Regular price
Sale price
€129,00 EUR
Tax included. Shipping calculated at checkout.
    Stabilizer Frame
    Stabilizer Frame
    Stabilizer Frame
    Stabilizer Frame
    Stabilizer Frame
    Stabilizer Frame
    Stabilizer Frame
    Stabilizer Frame
    Stabilizer Frame
    Stabilizer Frame

    Description

    Available end of April 2025

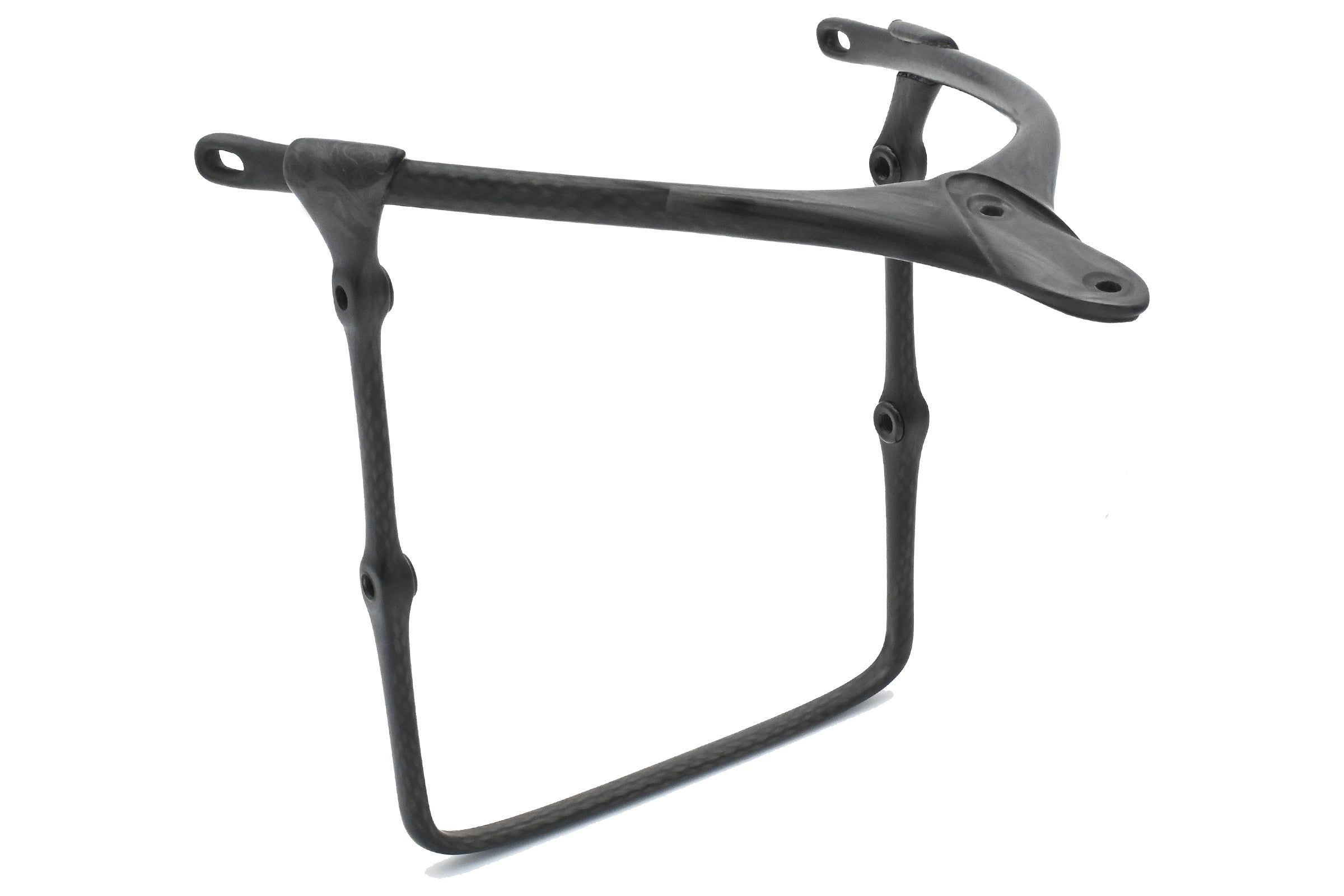

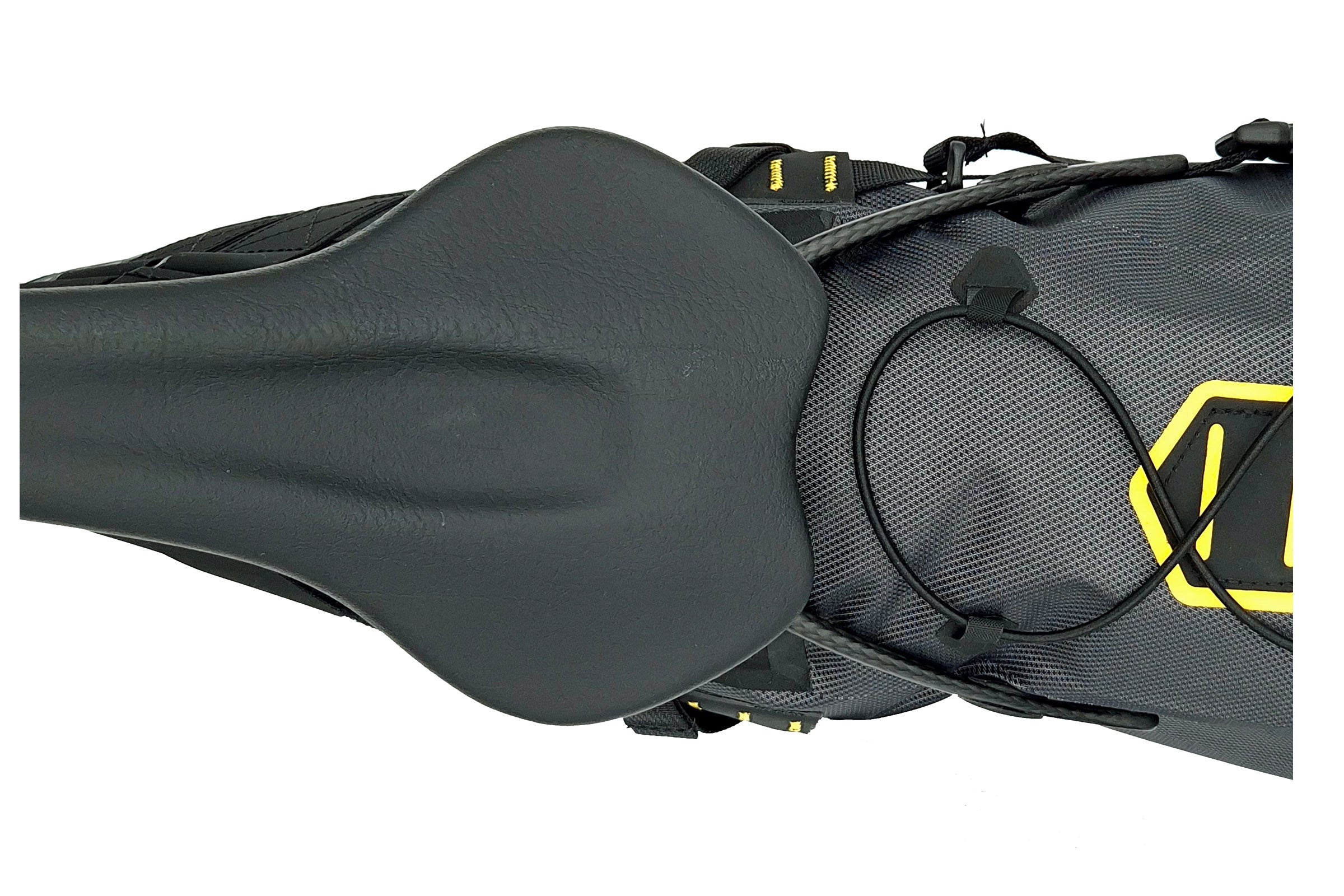

    Stabilizer frame for securing saddlebags and for holding two bottle holders. The stabilizer frame is attached to the Y-mount with two screws and effectively prevents saddlebags from swinging. The bag is enclosed by the frame and relieved of pressure. The lower bracket effectively prevents the bag from sagging, especially when it is not optimally filled. An optional strap provides even more stability. Optionally, you can also lash a sleeping bag or dry bag to your bag thanks to the long holes on the fork ends.

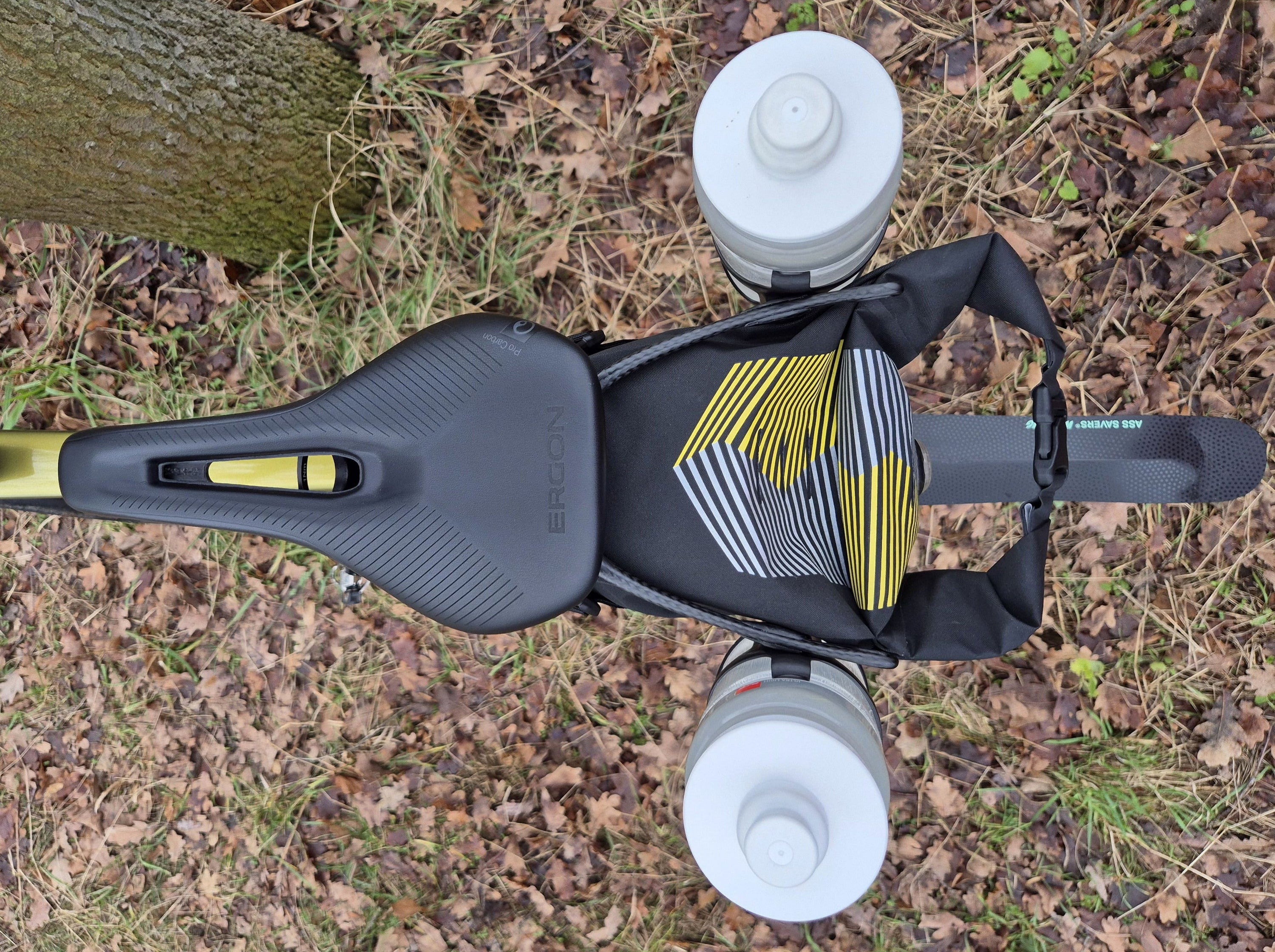

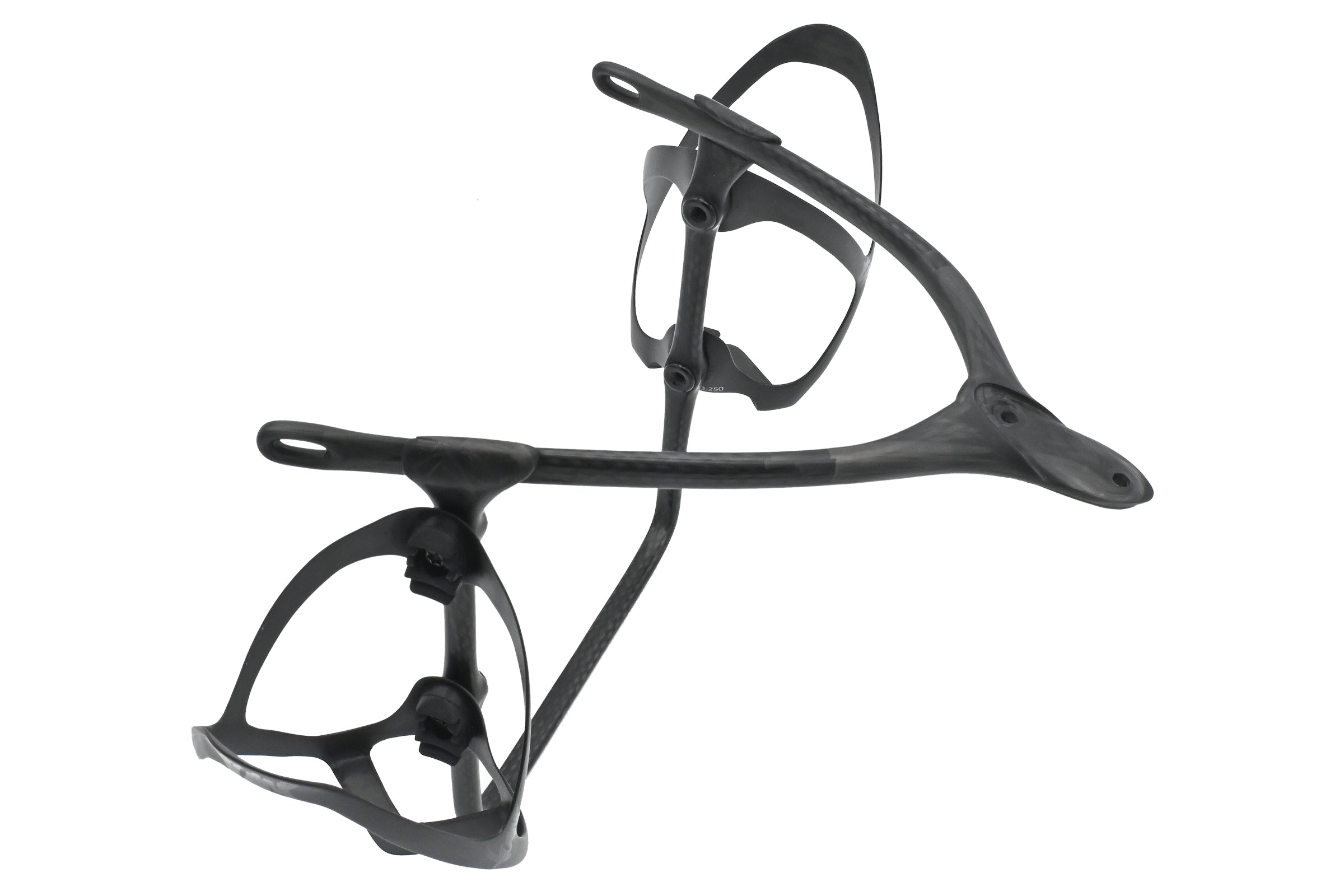

    The two bottle holder mounts are perfect for the aerodynamic positioning of additional drinking bottles. The position of the bottle holder mounts, which is slightly inclined towards the rider, guarantees convenient access to the bottles while riding.

    The stabilizer frame is manufactured using the 3D layup technology developed by CarbonWorks. The intelligent fiber routing enables maximum strength with low weight.

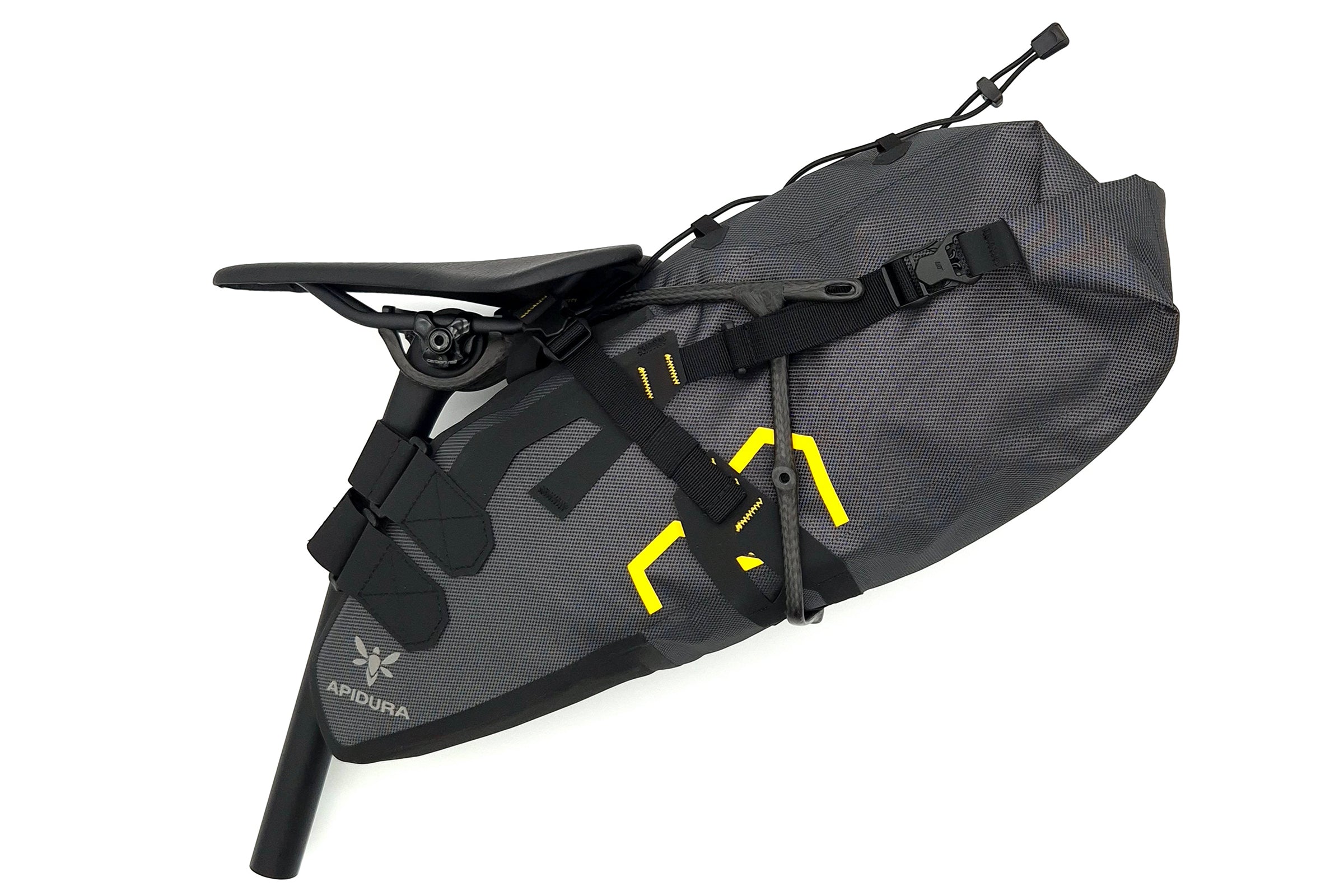

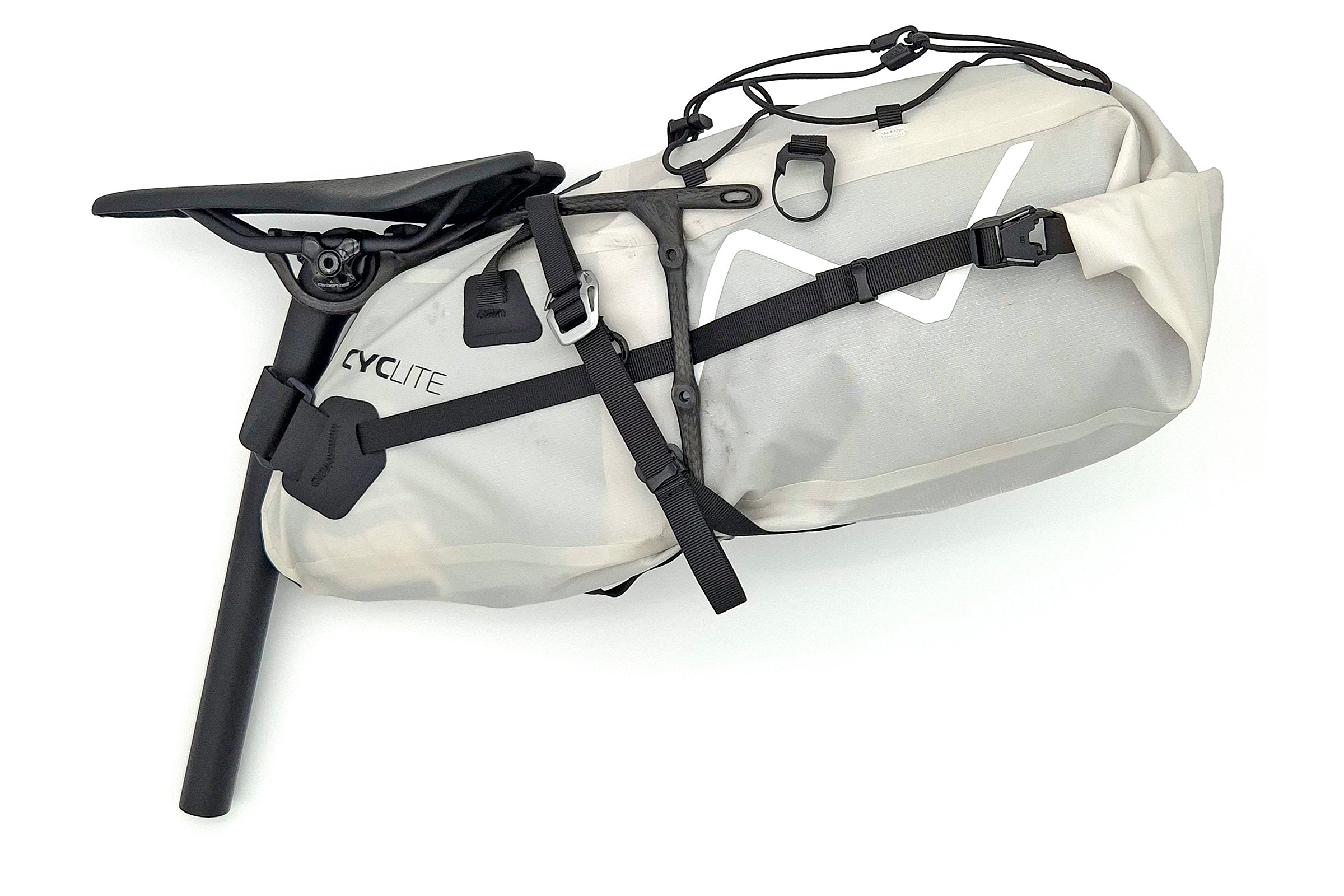

    • suitable for many saddlebags (e.g. Apidura, Cyclite, Ortlieb)
    • Weight 62g including titanium screws, load capacity up to 6kg
    • 2x bottle holder mounts
    • Mount for separately available Gopro adapter (for rear light/camera)
    • Possibility to attach a drybag or sleeping bag on top
    • 3D Layup Carbon Technology
    • polished visible carbon surface
    • Titanium screws for mounting on the Y-mount (included)

    The Y-MOUNT is not included in delivery. To use the stabilizer you need a Y-MOUNT .

    Technical data

    Material: Carbon manufactured in 3D layup technology

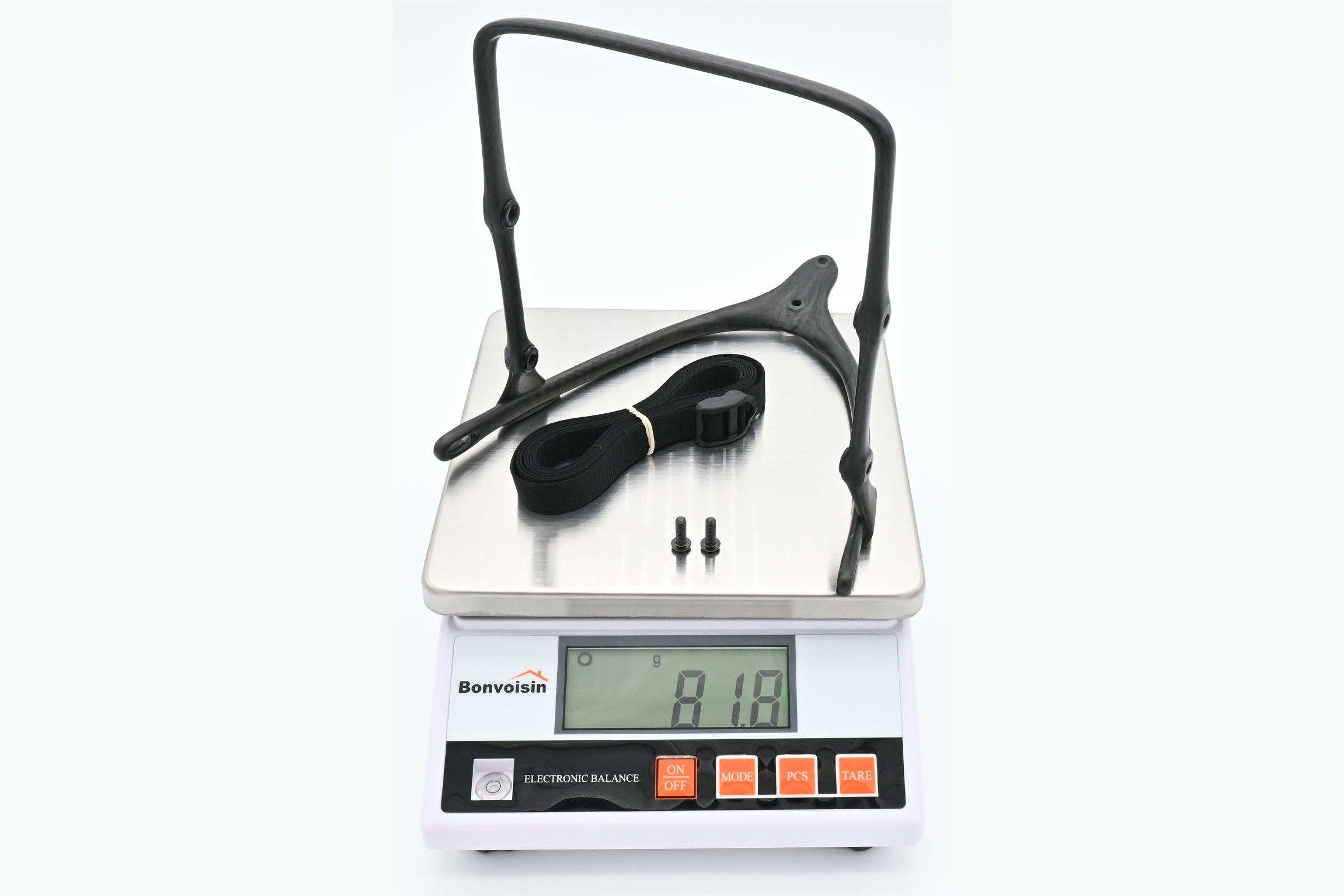

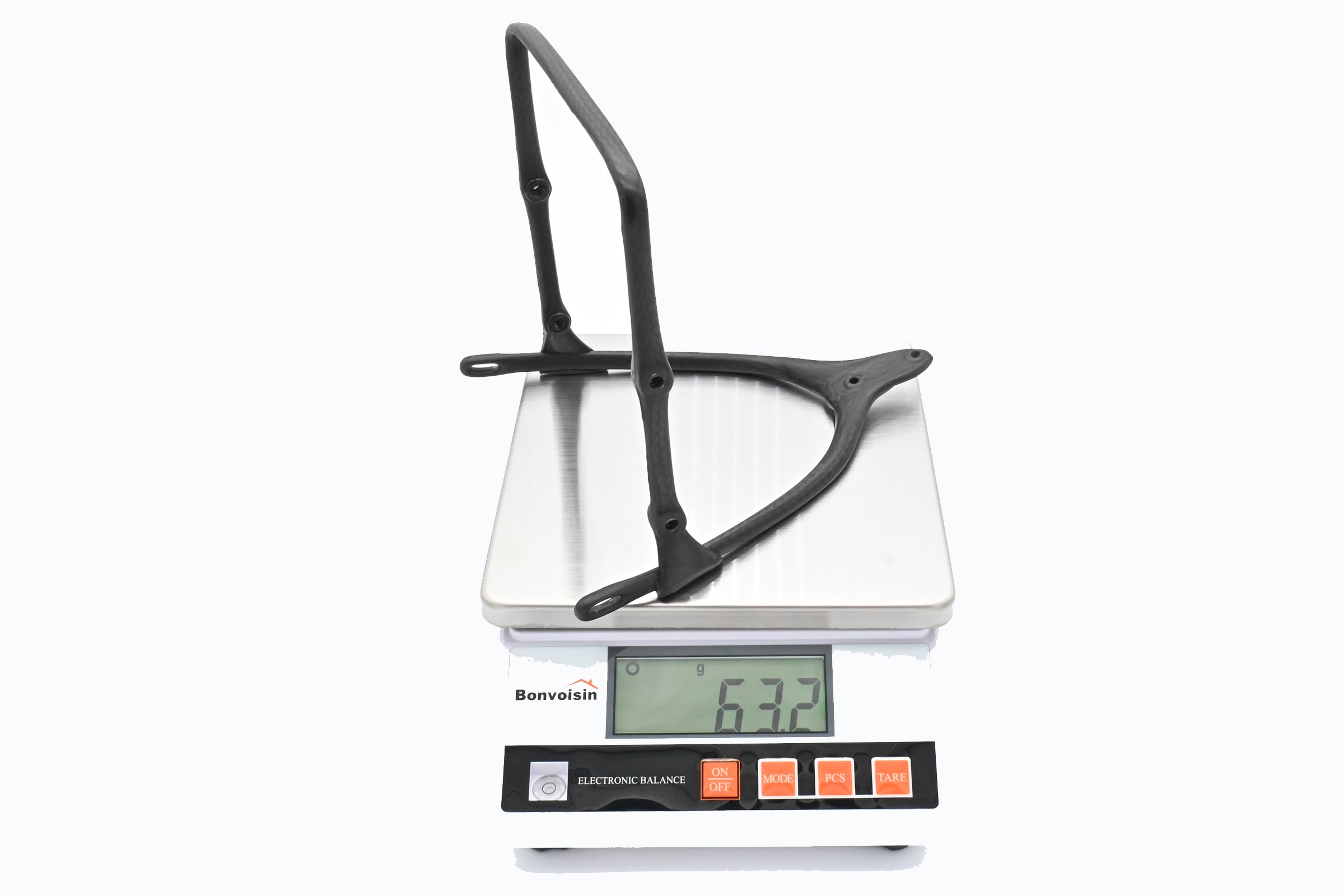

    Weight: 62g including titanium screws
    Maximum load capacity (excluding off-road use): 6kg
    Bottle holder mounts: 2x standard (M5)
    4x bottle holder screws made of AL7075, Torx T25
    Mount for accessories: (M5)
    Ultralight strap: 15mm, length 170cm

    scope of delivery

    Stabilizer Frame
    2x titanium screws for mounting on the Y-mount
    Ultralight strap, 170cm length

    (a Y-mount is not included)
