Stabilizer Frame

Stabiliser Frame for stabilizing saddle bags. It provides mounting points for two bottle cages. The Stabiliser Frame can serve as the base for our Y-MOUNT saddle bags (10 l and 13 l). However, it can also be combined with bags from other manufacturers and effectively prevent them from swaying.

The Stabiliser Frame adds a hanger with two bottle cage mounts to the Stabiliser Fork. It encloses bags and stabilises them reliably. A strap that is threaded through the slotted holes at the ends of the fork provides additional stabilisation for saddle bags, and you can also lash a sleeping bag or dry bag on top if necessary.

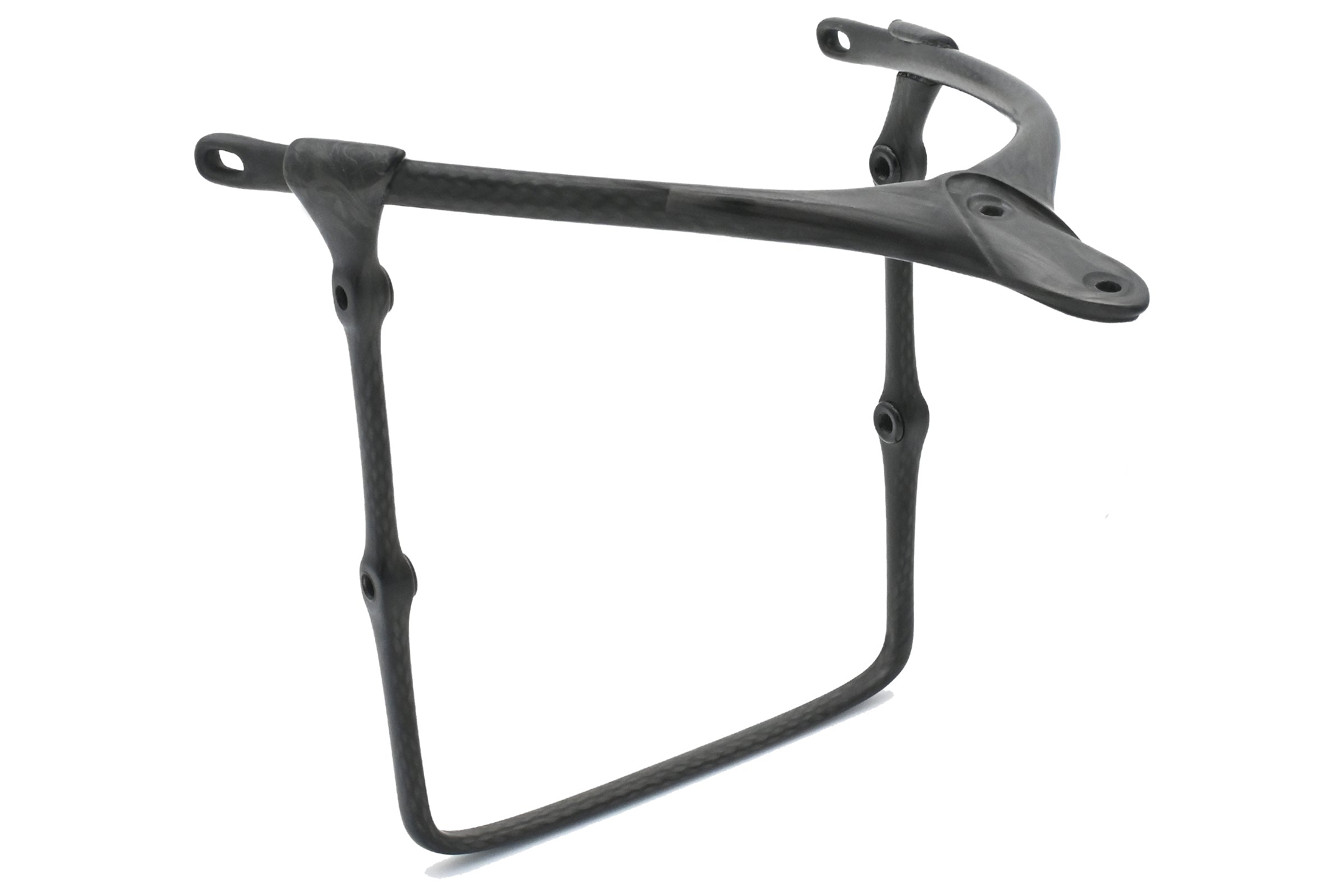

The Stabiliser Frame is manufactured using the 3D layup technology developed by CarbonWorks. The intelligent fibre routing enables maximum strength with low weight.

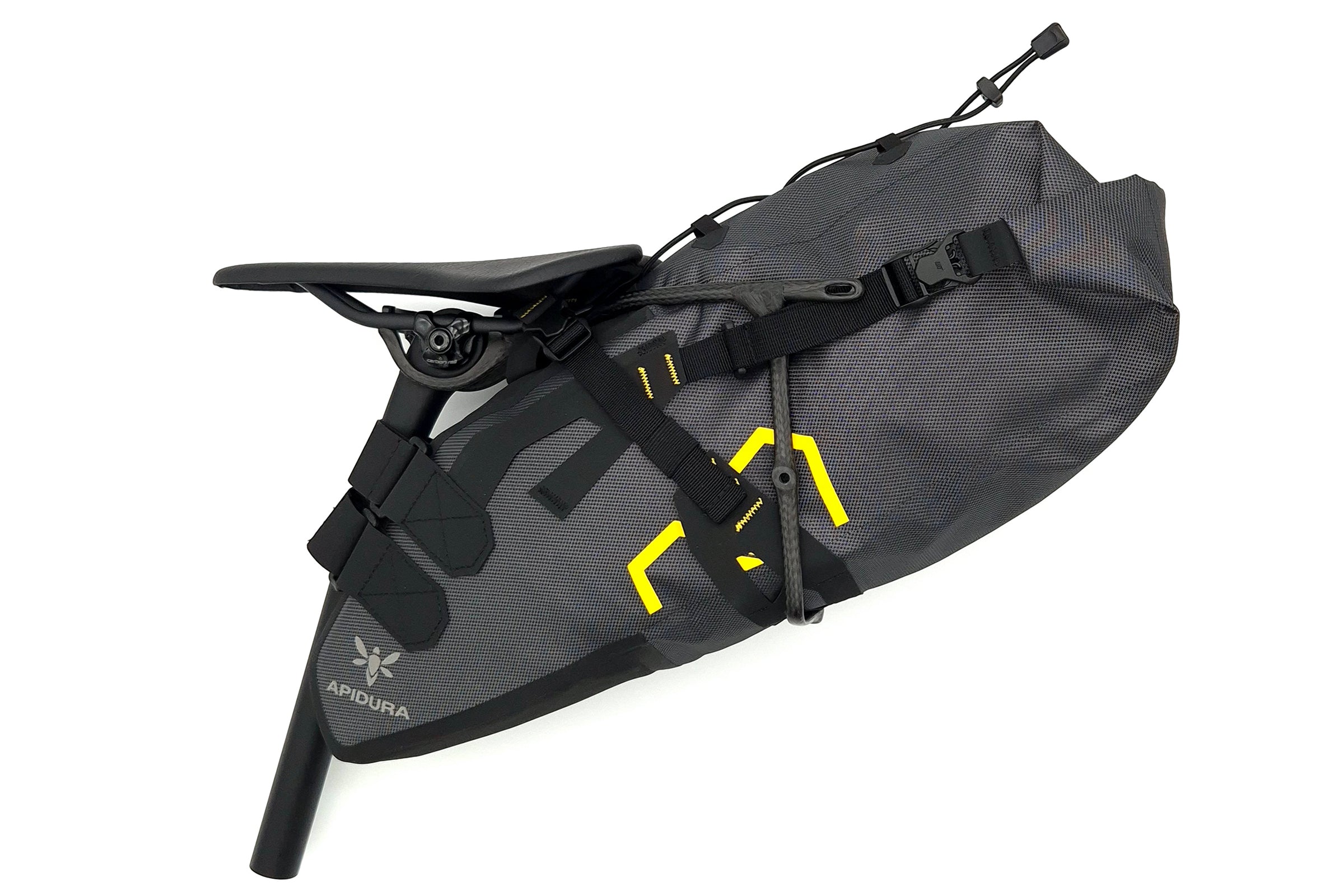

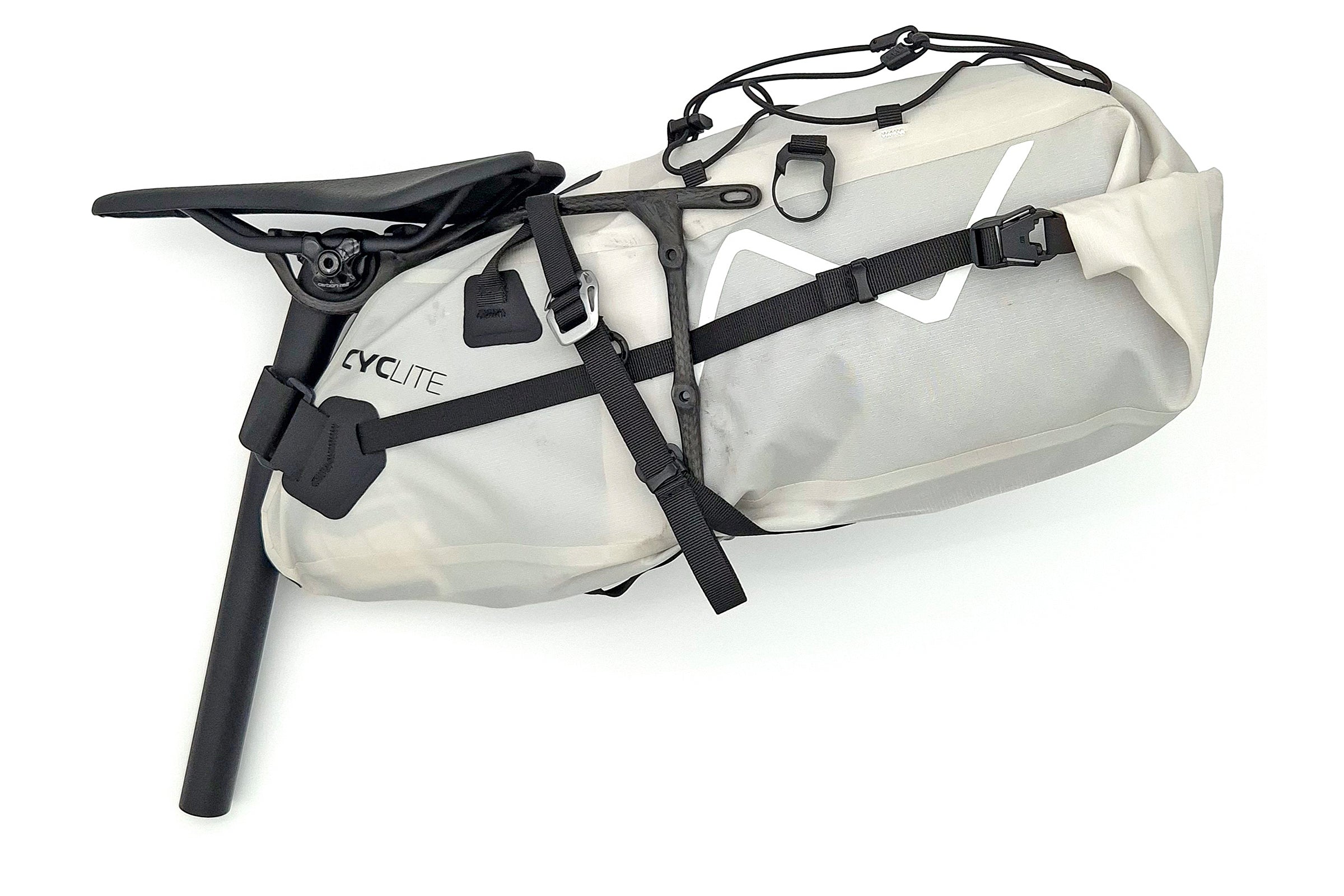

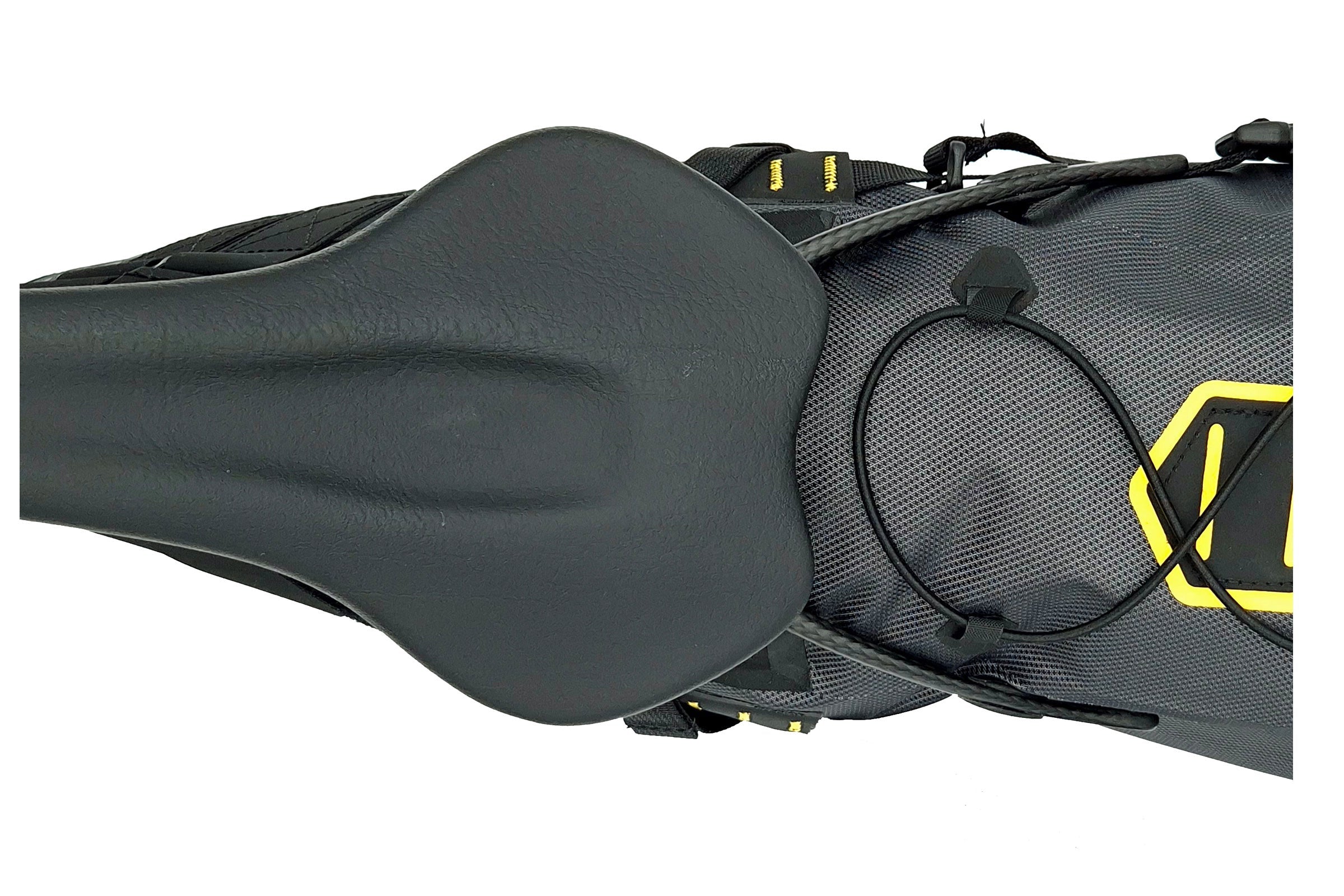

• suitable for many saddle bags (e.g. Apidura, Cyclite, Ortlieb)

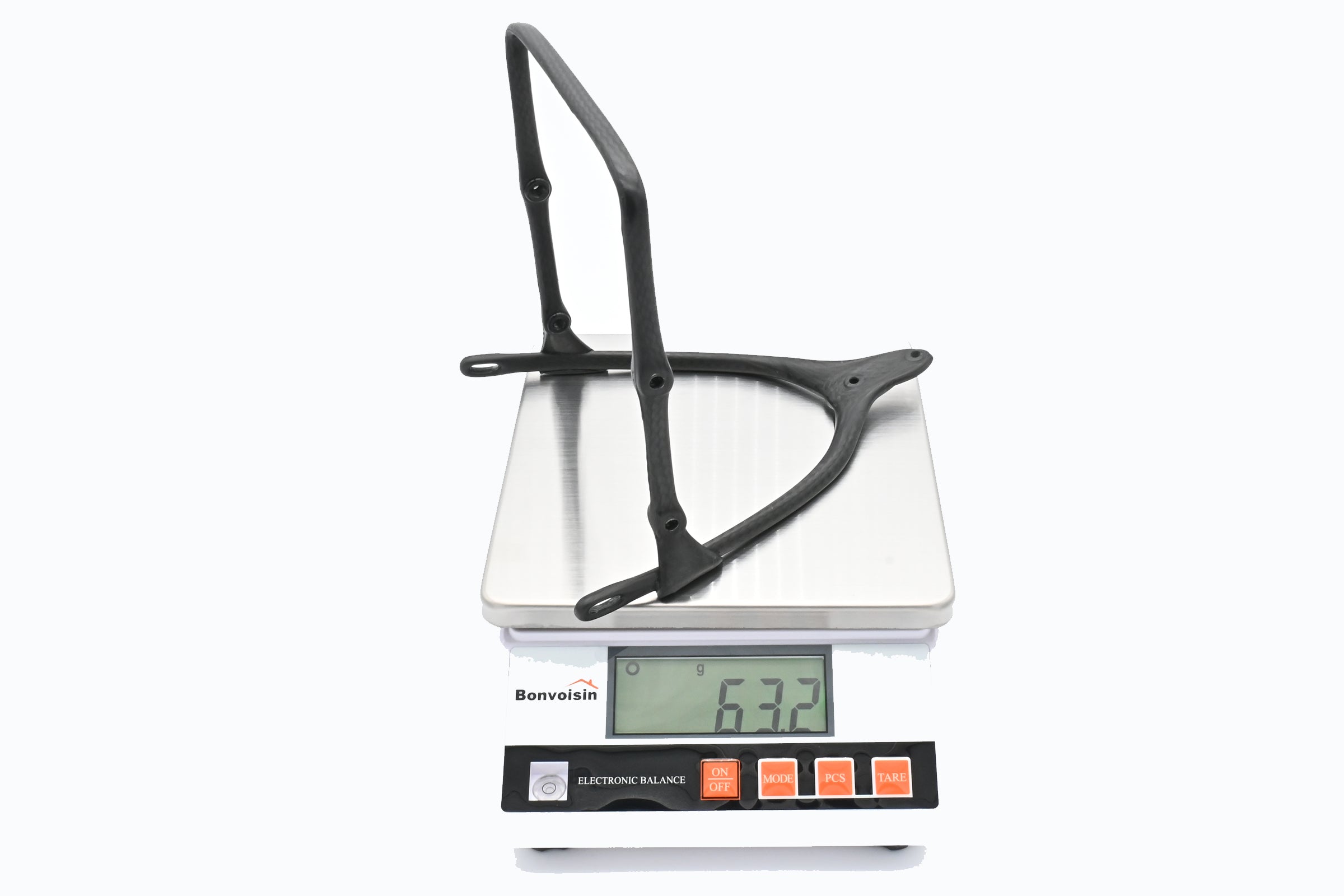

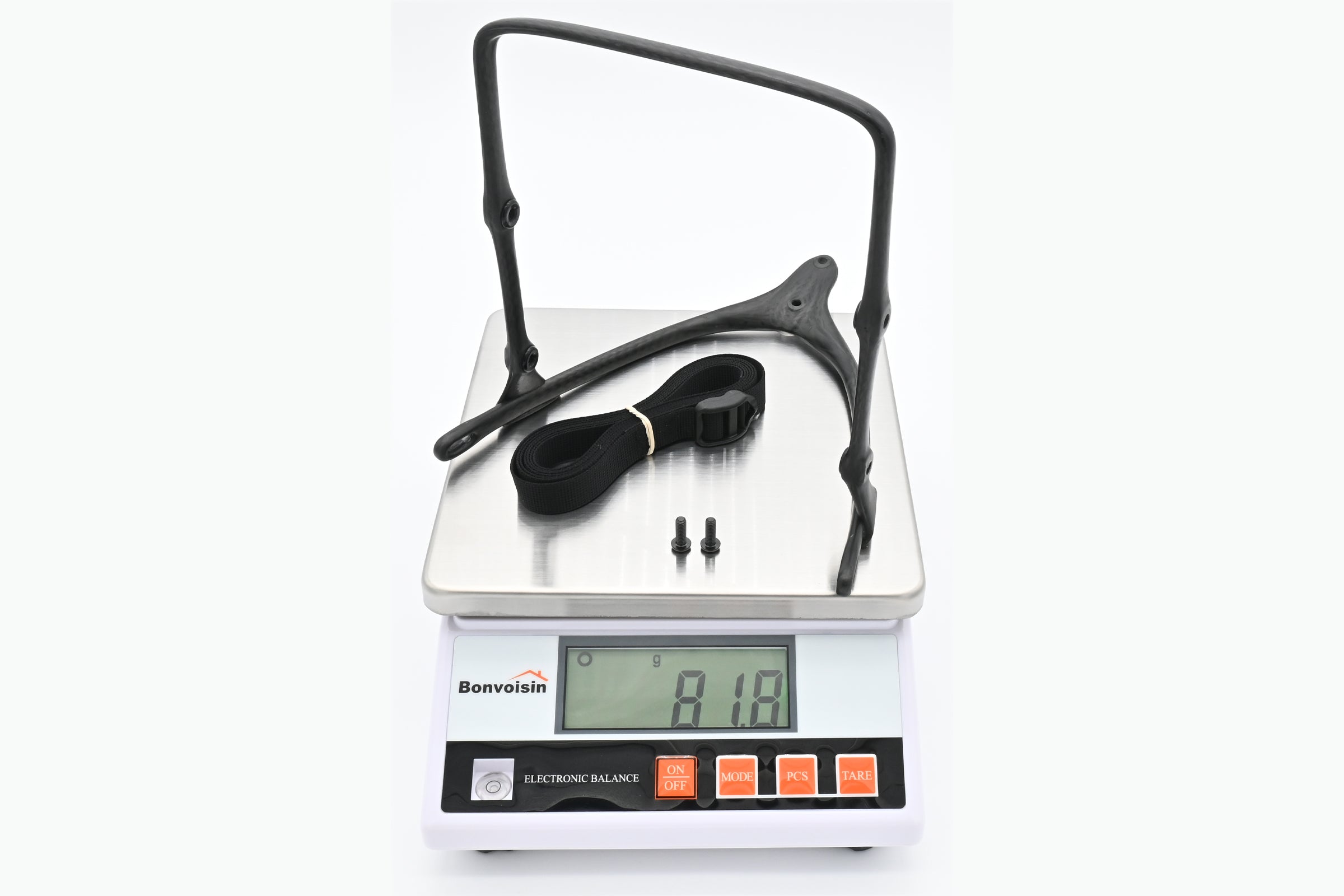

• weight 63 g, (incl. titan screws and up-strap 82 g)
• load capacity up to 5 kg
• 2x bottle cage mounting points
• 3D Layup Carbon Technology
• polished visible carbon surface
• 4x bottle cage screws made from AL7075 included

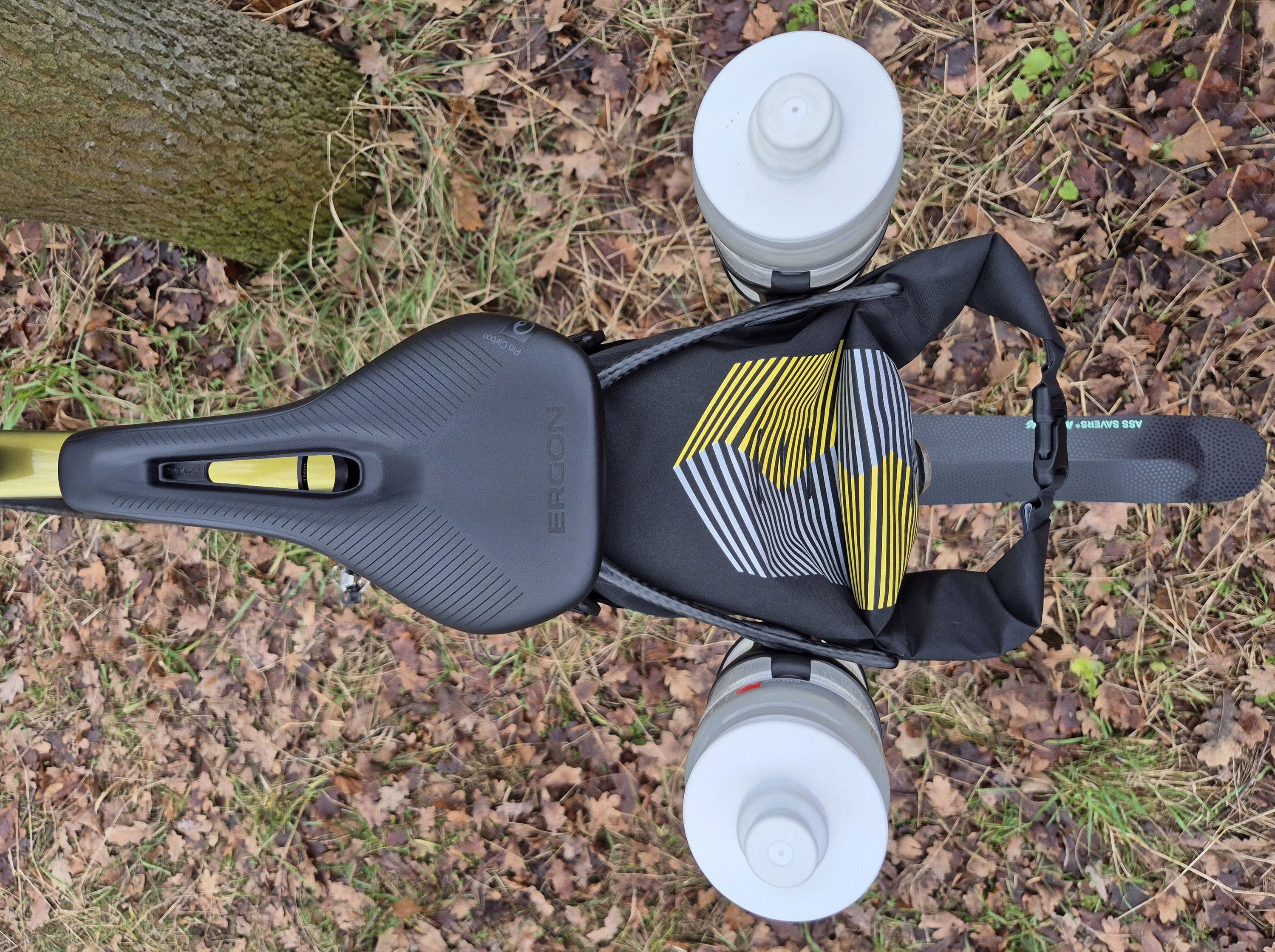

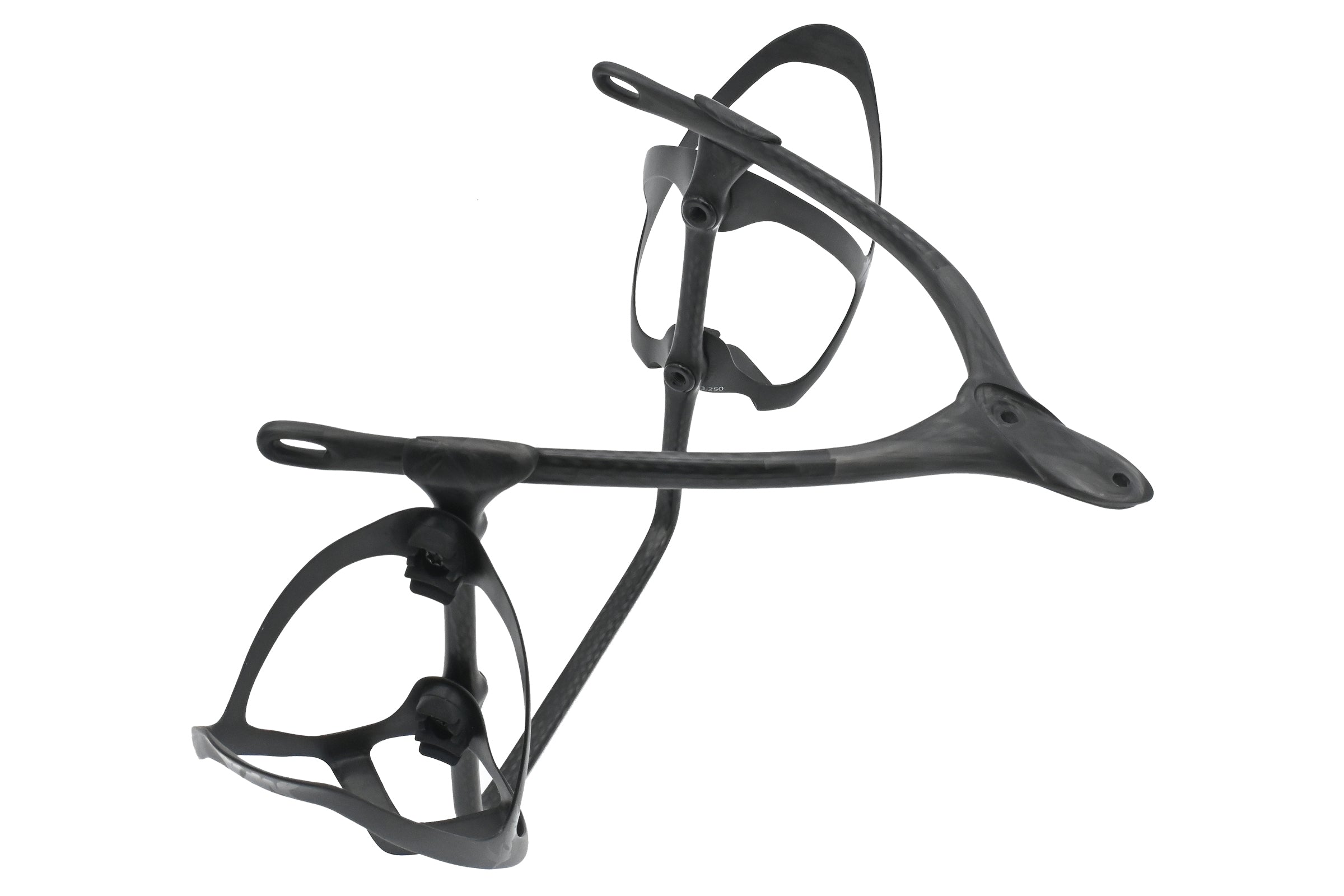

The two bottle cage mounts are perfect for aerodynamic positioning of additional bottles. The bottle cage mounts are slightly tilted towards the rider, ensuring easy access to the bottles while riding.

Please note: Not all bottle cages fit the Stabiliser Frame and not all bottle cages hold the bottles securely enough. We have had good experiences with the Cube Sidecage and the Tacx Ciro.

(Y-MOUNT, bottle cages and saddle bags are not included in the scope of delivery. To use the Stabiliser Frame, you need a Y-MOUNT.)

material: Carbon manufactured in 3D layup technology
weight: 63 g
maximum load capacity (excluding off-road use): 5 kg
bottle cage mounts: 2x standard (M5)
4x bottle cage screws made of AL7075, Torx T25
strap: 15mm, length 170 cm

1x Stabilizer Frame
2x titanium screws for mounting on the Y-MOUNT
4x bottle cage screws made from AL7075
1x Ultralight strap

(a Y-MOUNT is not included)
