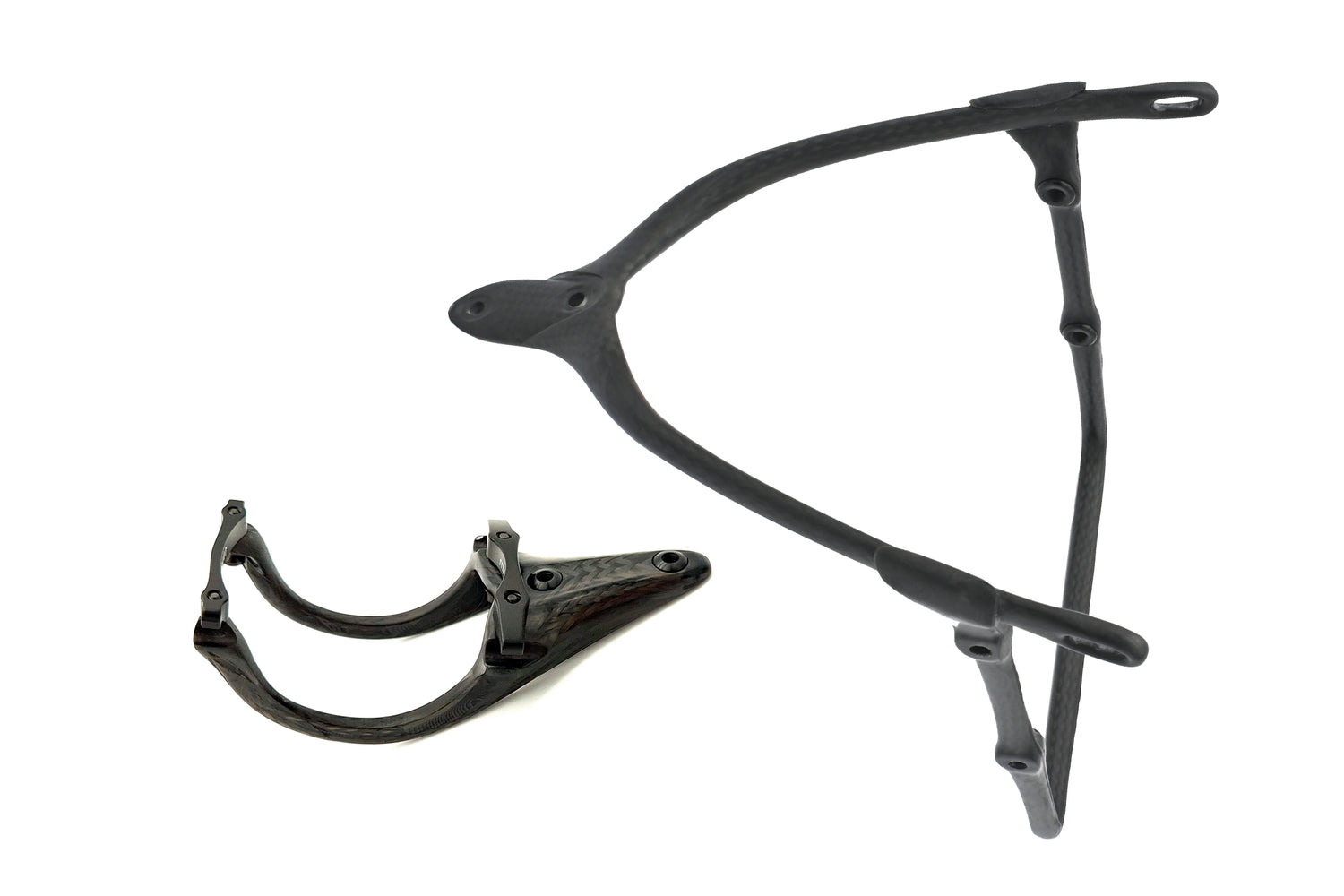

Set: Y-Mount / Stabilizer Frame

Set consisting of:

1x Y-MOUNT

1x Stabilizer Frame

Y-MOUNT - the innovative 4-point saddle rail mounting system (patent pending)

Suitable for most saddle models, weighs only 31g and carries up to 6kg. For the simple and stable mounting of saddle bags, bottle holders, stabilizers, rear light holders and other Y-MOUNT products.

• universally suitable for round and oval seat stays (carbon, titanium, steel)
• stable and safe thanks to 4-point clamping
• quick change of bags and accessories
• manufactured in 3D Layup Carbon technology
• polished visible carbon surface
• aerodynamically optimized design
• Grade 5 titanium screws for maximum strength

The Y-Mount is mounted on the seat stays and is extremely stable and resilient thanks to its unique 4-point design (patent pending). Thanks to its low weight of just 31g and its aerodynamically optimized shape, it can remain permanently on the bike and serves as a stable mount for bags, bottle holders and other accessories. The ultra-light and resilient mounting solution for high-quality bikes.

Ideal for:

• Bikepacking (bags)
• Triathlon and time trial bikes (water bottle holders)
• Road and gravel bikes, mountain bikes (small bags, rear light and GoPro mount)

Stabilizer frame for securing saddlebags and for holding two bottle holders. The stabilizer frame is attached to the Y-MOUNT with two screws and effectively prevents saddlebags from swinging. The lower bracket effectively prevents the bag from sagging, especially when it is not optimally filled. The ul-strap included provides even more stability. Optionally, you can also lash a sleeping bag or dry bag to your bag thanks to the ficing points on the fork ends.

The two bottle cage mounts are perfect for the aerodynamic positioning of additional bottles. The position of the bottle cage mounts, which is slightly inclined towards the rider, guarantees convenient access to the bottles while riding.

The stabilizer frame is manufactured using the 3D layup technology developed by CarbonWorks. The intelligent fiber routing enables maximum strength with low weight.

• suitable for many saddlebags (e.g. Apidura, Cyclite, Ortlieb)

• weight 63g
• load capacity up to 5kg
• 2x bottle cage mounts

• possibility to attach a drybag or sleeping bag on top
• 3D Layup Carbon Technology
• polished visible carbon surface
• 4x bottle cage screws made from aluminium (AL7075)
• Titanium screws for mounting on the Y-MOUNT

Y-Mount
Material: Carbon manufactured in 3D layup technology
Weight: 31g
Max. load capacity: (depending on accessories): 6kg
Screws: Titanium Grade5, Torx T20
Material Yokes: AL7075
Suitable for most saddle models, maximum clamp width of the seat post on the seat rails: 60mm

For round or oval seat stays made of carbon, titanium or steel (please select variant)

Note: The variants for round and oval seat stays only differ in the screw lengths. The variant for oval seat stays (7x9) also fits round seat stays (7x7), but then the screws protrude a little. We offer screw sets for oval and round seat stays separately, so that you can also convert your Y-mount later.


Stabilizer Frame
Material: Carbon manufactured in 3D layup technology
Surface: visible carbon, polished
Weight: 63g
Maximum load capacity (excluding off-road use): 5kg
Bottle cage mounts: 2x standard (M5)
4x bottle cage screws made of AL7075, Torx T25
Ultralight strap: 15mm, length 170cm

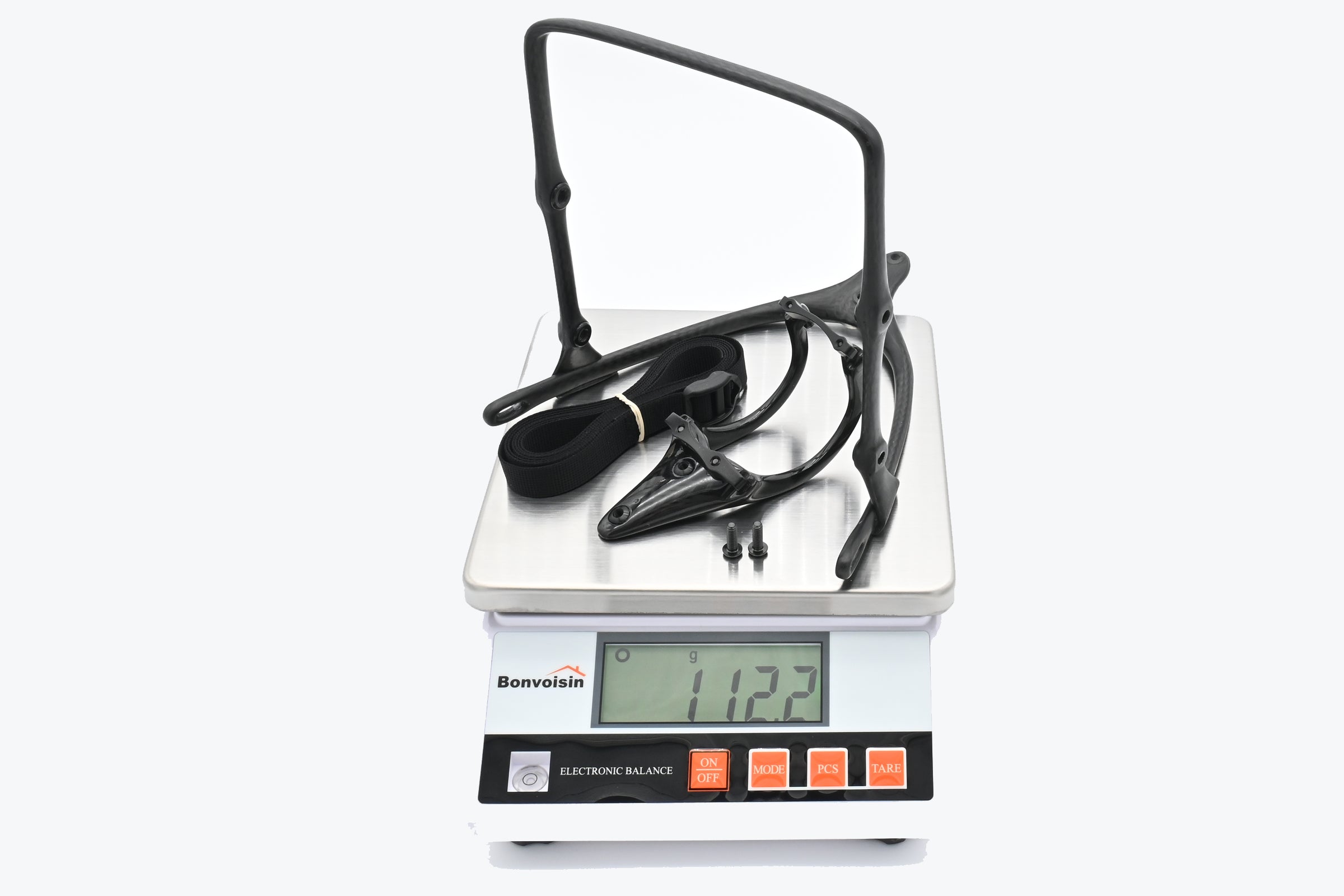

Total weight, Y-MOUNT, Stable Frame, ul strap, titanium screws: 112g

1x Y-Mount
1x Stabilizer Fork with titanium screws
4x bottle holder screws made of AL7075
1x Ultralight strap
